Electro Magnetic Pulse Technology (EMPT) System

Electro Magnetic Pulse Technology System

Multifunctional systems capable of high-strength welding and multi-material bonding without distortion and heat loss using electromagnetic pulse technology

Main features
  • High-strength welding and crimping without thermal-related loss of material properties
  • Easy integration into production lines and higher-level quality detecting systems
  • Safe technology in accordance with legal regulations
  • Low service and maintenance
Detail


Principle

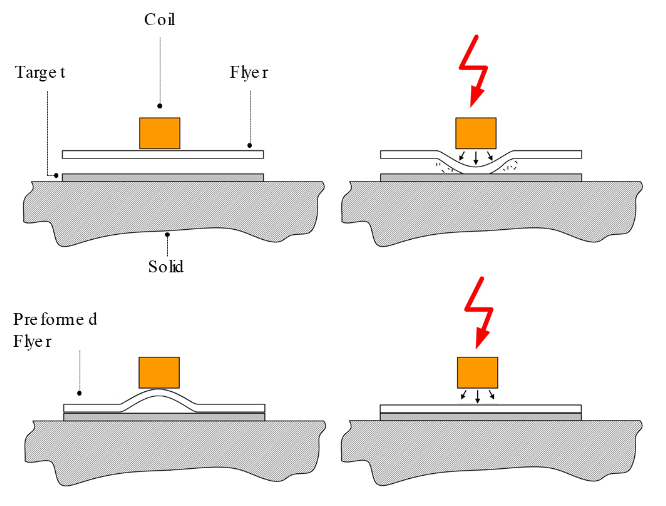

The electromagnetic pulse technology (EMPT) is based on the physical law of the Lorentz force,
which is generated, if a varying magnetic field induces counter flowing eddy currents in nearby electrically conducting materials, so that these materials are repelled from each other.

In optimized machines, these forces can be used to accelerate work pieces to a speed of up to 600m/s.
The electro-magnetic forces can be used for welding, crimping, forming, cutting and compressing of technical products with the highest quality demands.

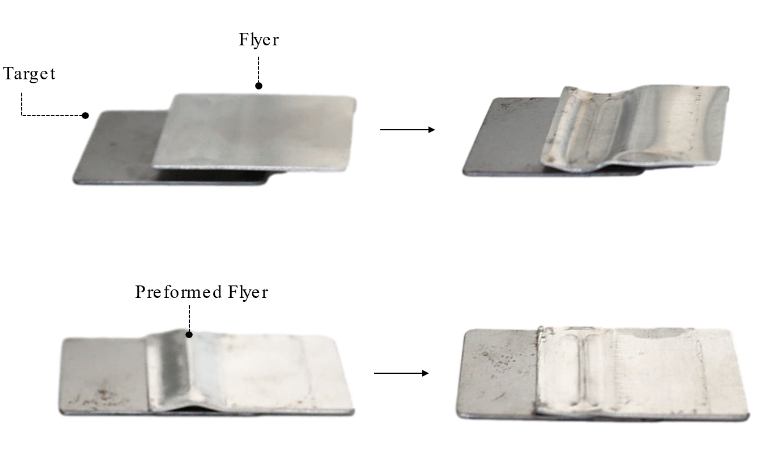

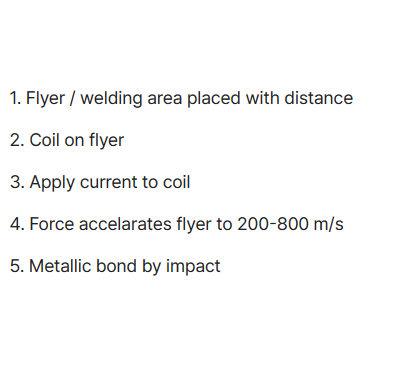

Process

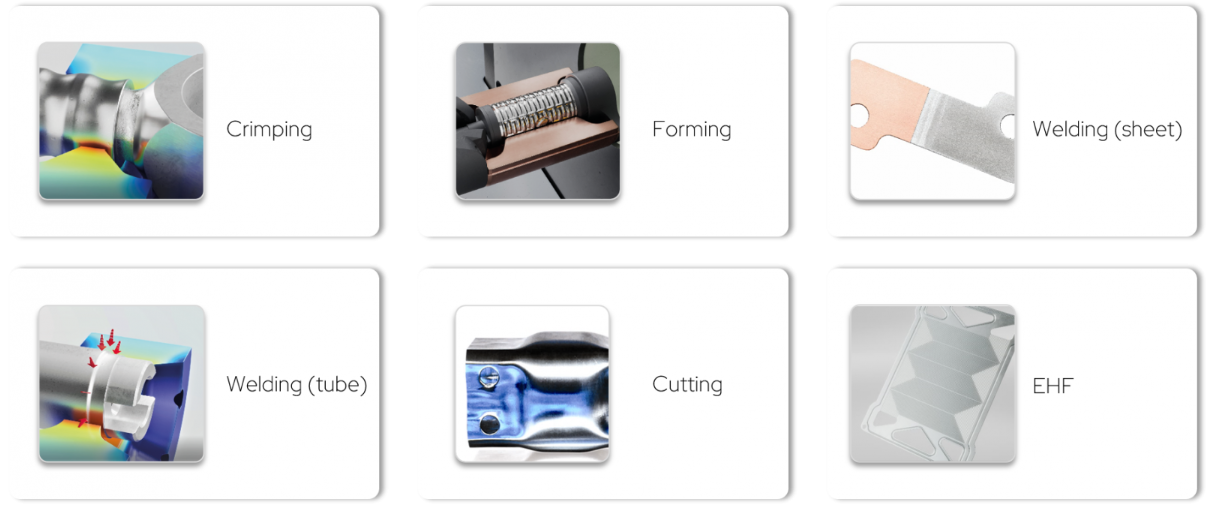

Field of Applications













Applications






video
